Example use cases to get data from web feature or web coverage services. • inbospatial

library(sf)
#> Linking to GEOS 3.12.1, GDAL 3.8.4, PROJ 9.4.0; sf_use_s2() is TRUE
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(inbospatial)

Introduction

A WFS or Web Feature Service allows you to download vector spatial data from the web. A WCS or Web Coverage Service is similar, but is used for raster spatial data. In this vignette, we will show how to the functions get_feature_wfs() and get_coverage_wcs() can be used to get data into your R session from these services.

For a more in-depth explanation about WFS services, we refer to the INBO tutorial about WFS. The tutorial takes a more hands-on coding approach to getting data from a WFS, whereas in this vignette much of the coding stuff is hidden away in the get_feature_wfs() function.

WFS examples

Simple use case without filter

As a test case, we will query municipal boundaries of Flanders from the “Provisional Reference Municipal Boundaries” (VRBG, Voorlopig ReferentieBestand Gemeentegrenzen), which is available via an API on the vlaanderen.be website.

wfs_vrbg <- "https://geo.api.vlaanderen.be/VRBG/wfs"

provinces <- get_feature_wfs(
  wfs = wfs_vrbg,
  layername = "VRBG:Refprv",
  crs = "EPSG:31370"
)

provinces
#> Simple feature collection with 5 features and 7 fields
#> Geometry type: MULTISURFACE
#> Dimension:     XY
#> Bounding box:  xmin: 21991.63 ymin: 153058.3 xmax: 258871.8 ymax: 244027.2
#> Projected CRS: BD72 / Belgian Lambert 72
#> # A tibble: 5 × 8
#>   gml_id    UIDN  OIDN TERRID NAAM       NISCODE NUTS2                     SHAPE
#>   <chr>    <dbl> <dbl>  <dbl> <chr>      <chr>   <chr>        <MULTISURFACE [m]>
#> 1 Refprv.1    18     2    357 Antwerpen  10000   BE21  (POLYGON ((178136.3 2440…
#> 2 Refprv.2    19     4    359 Vlaams Br… 20001   BE24  (POLYGON ((200484.9 1935…
#> 3 Refprv.3    20     3    351 West-Vlaa… 30000   BE25  (POLYGON ((80681.53 2276…
#> 4 Refprv.4    21     1    355 Limburg    70000   BE22  (POLYGON ((231494.3 2191…
#> 5 Refprv.5    22     5    356 Oost-Vlaa… 40000   BE23  (POLYGON ((145735.2 2203…

You can achieve (almost) the same result using a combination of sf::read_sf() and sf::st_transform().

provinces2 <- read_sf(paste0("WFS:", wfs_vrbg),
  layer = "VRBG:Refprv"
)

waldo::compare(provinces, provinces2,
  x_arg = "inbospatial", y_arg = "sf",
  max_diffs = 8
)
#> ✔ No differences

Both methods yield the same result. Note however that for other examples, you may notice substantial differences, most notably for field specifications. The reason for such differences is that get_feature_wfs() retrieves whatever information that is identified from the WFS request - in the same way as you would paste the request in the browser. This result is then saved temporarily to a .GML file and read with sf::read_sf(). Passing the WFS directly to the dsn argument of sf::read_sf, on the other hand, will translate the request to a form that will pass through the GDAL WFS driver, which handles field specifications by reading them from a DescribeFeatureType request:

At the first opening, the content of the result of the GetCapabilities request will be appended to the file, so that it can be cached for later openings of the dataset. The same applies for the DescribeFeatureType request issued to discover the field definition of each layer.

Apply a CQL-Filter to filter on a field

CQL, the “Common Query Language” (see here, for example), provides a way to filter WFS data. The syntax of CQL is comparable to SQL, yet there are differences in data types and structures.

You can provide and apply filters in get_feature_wfs() via the cql_filter argument.

wfs_vrbg <- "https://geo.api.vlaanderen.be/VRBG/wfs"

prov <- get_feature_wfs(
  wfs = wfs_vrbg,
  layername = "VRBG:Refprv",
  cql_filter = "NAAM='West-Vlaanderen'"
)

prov
#> Simple feature collection with 1 feature and 7 fields
#> Geometry type: MULTISURFACE
#> Dimension:     XY
#> Bounding box:  xmin: 21991.63 ymin: 155928.6 xmax: 90410.78 ymax: 229724.6
#> Projected CRS: BD72 / Belgian Lambert 72
#> # A tibble: 1 × 8
#>   gml_id    UIDN  OIDN TERRID NAAM       NISCODE NUTS2                     SHAPE
#>   <chr>    <dbl> <dbl>  <dbl> <chr>      <chr>   <chr>        <MULTISURFACE [m]>
#> 1 Refprv.3    20     3    351 West-Vlaa… 30000   BE25  (POLYGON ((80681.53 2276…

Here, we could have also used sf::read_sf() in combination with an OGR SQL query:

prov2 <- read_sf(paste0("WFS:", wfs_vrbg),
  query = "SELECT * FROM Refprv WHERE NAAM='West-Vlaanderen'"
)

waldo::compare(prov, prov2)
#> ✔ No differences

Both methods yield the same result.

Request a subset of fields

Instead of querying the complete data table, one can select a subset of variables (fields). The function get_feature_wfs() provides the property_name keyword for it, which accepts a string of comma-separated field names. Note that field names are capitalized on this particular geoserver.

wfs_vrbg <- "https://geo.api.vlaanderen.be/VRBG/wfs"

prov_fields <- get_feature_wfs(
  wfs = wfs_vrbg,
  layername = "VRBG:Refprv",
  crs = "EPSG:31370",
  property_name = paste("NAAM", "NUTS2", "SHAPE", sep = ",")
)

prov_fields
#> Simple feature collection with 5 features and 2 fields
#> Geometry type: MULTISURFACE
#> Dimension:     XY
#> Bounding box:  xmin: 21991.63 ymin: 153058.3 xmax: 258871.8 ymax: 244027.2
#> Projected CRS: BD72 / Belgian Lambert 72
#> # A tibble: 5 × 3
#>   NAAM            NUTS2                                                    SHAPE
#>   <chr>           <chr>                                       <MULTISURFACE [m]>
#> 1 Antwerpen       BE21  (POLYGON ((178136.3 244009.2, 178131.2 244010.4, 178133…
#> 2 Vlaams Brabant  BE24  (POLYGON ((200484.9 193541, 200484.8 193541.2, 200484.5…
#> 3 West-Vlaanderen BE25  (POLYGON ((80681.53 227626.5, 80777.99 228143, 80661.88…
#> 4 Limburg         BE22  (POLYGON ((231494.3 219142.5, 231194.3 219455.2, 230929…
#> 5 Oost-Vlaanderen BE23  (POLYGON ((145735.2 220358.3, 145217.2 220640.1, 145216…

Again, we can use sf::read_sf() in combination with an OGR SQL query:

prov_fields_sf <- read_sf(paste0("WFS:", wfs_vrbg),
  query = "SELECT NAAM, NUTS2 FROM Refprv"
)

waldo::compare(prov_fields, prov_fields_sf)
#> ✔ No differences

Meteorological data example

Another example of a WFS API is the Belgian Royal Meteorological Institute (KMI, Koninklijk Meteorologisch Instituut van België). Details can be found here, and here.

kmi <- "https://opendata.meteo.be/service/wfs"

kmi_stations <- get_feature_wfs(
  wfs = kmi,
  layer = "synop:synop_station"
)

kmi_stations
#> Simple feature collection with 22 features and 4 fields
#> Geometry type: POINT
#> Dimension:     XY
#> Bounding box:  xmin: 2.887306 ymin: 49.62036 xmax: 6.073438 ymax: 51.34738
#> Geodetic CRS:  WGS 84
#> # A tibble: 22 × 5
#>    gml_id           name  altitude date_end                       the_geom
#>    <chr>            <chr>    <dbl> <dttm>                      <POINT [°]>
#>  1 synop_station.6… SPA …    482   NA                  (5.909864 50.47861)
#>  2 synop_station.6… SAIN…    557   NA                  (5.403753 50.03887)
#>  3 synop_station.6… BEIT…     24.8 NA                  (3.121692 50.90398)
#>  4 synop_station.6… ZEEB…     12.1 NA                  (3.201846 51.34737)
#>  5 synop_station.6… STAB…      4   NA                   (4.363798 51.3248)
#>  6 synop_station.6… UCCL…    101.  2003-12-09 08:00:00 (4.357871 50.79686)
#>  7 synop_station.6… UCCL…    101.  NA                  (4.357871 50.79686)
#>  8 synop_station.6… DIEP…     39.3 NA                  (5.450296 50.91546)
#>  9 synop_station.6… BIER…    178   NA                  (5.458738 50.64528)
#> 10 synop_station.6… SINT…      8.3 NA                  (4.524608 51.07512)
#> # ℹ 12 more rows

This is a list of all KMI stations. You can plot it with leaflet or mapview to see the stations on a map and learn that -for instance- Ukkel has code 6447. So let’s extract the maximum daily temperatures for Ukkel starting from the year 2000.

kmi_synop <- get_feature_wfs(
  wfs = kmi,
  layername = "synop:synop_data",
  property_name = paste(
    "code", "timestamp", "temp_max", "the_geom",
    sep = ","
  ),
  cql_filter = "((code = 6447) AND (temp_max IS NOT NULL) AND
    (timestamp >= '2000-01-01 00:00:00.000'))"
)

kmi_synop
#> Simple feature collection with 9074 features and 3 fields
#> Geometry type: POINT
#> Dimension:     XY
#> Bounding box:  xmin: 4.357871 ymin: 50.79666 xmax: 4.357875 ymax: 50.79686
#> Geodetic CRS:  WGS 84
#> # A tibble: 9,074 × 4
#>     code timestamp           temp_max            the_geom
#>    <int> <dttm>                 <dbl>         <POINT [°]>
#>  1  6447 2021-08-06 18:00:00     20.6 (4.357871 50.79686)
#>  2  6447 2021-09-17 18:00:00     22.2 (4.357871 50.79686)
#>  3  6447 2021-09-16 18:00:00     20.9 (4.357871 50.79686)
#>  4  6447 2021-09-18 18:00:00     23   (4.357871 50.79686)
#>  5  6447 2021-09-19 18:00:00     21.7 (4.357871 50.79686)
#>  6  6447 2021-09-20 18:00:00     19   (4.357871 50.79686)
#>  7  6447 2021-09-21 18:00:00     18.3 (4.357871 50.79686)
#>  8  6447 2021-09-22 18:00:00     19.8 (4.357871 50.79686)
#>  9  6447 2021-08-07 18:00:00     20.6 (4.357871 50.79686)
#> 10  6447 2021-08-08 18:00:00     20.1 (4.357871 50.79686)
#> # ℹ 9,064 more rows

Spatial filtering using a bounding box

Few analyses will require a whole countries’ data, even if the country is as small as Belgium. Hence, it might be useful by restricting the data you query with a bounding box. This works as follows, using a bbox with the elements xmin, ymin, xmax, and ymax.

wfs_bwk <-
  "https://geo.api.vlaanderen.be/BWK/wfs"

bwk_bbox <- get_feature_wfs(
  wfs = wfs_bwk,
  layername = "BWK:Bwkhab",
  crs = "EPSG:31370",
  bbox = c(xmin = 142600, ymin = 153800, xmax = 146000, ymax = 156900)
)

bwk_bbox
#> Simple feature collection with 668 features and 32 fields
#> Geometry type: MULTISURFACE
#> Dimension:     XY
#> Bounding box:  xmin: 137307.1 ymin: 153734.4 xmax: 146672.9 ymax: 160747.2
#> Projected CRS: BD72 / Belgian Lambert 72
#> # A tibble: 668 × 33
#>    gml_id      UIDN   OIDN TAG   EVAL  EENH1 EENH2 EENH3 EENH4 EENH5 EENH6 EENH7
#>    <chr>      <dbl>  <dbl> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr>
#>  1 Bwkhab.6… 1.33e6 7.69e5 3785… z     va    qe    vc    NA    NA    NA    NA
#>  2 Bwkhab.6… 7.29e5 7.06e5 5330… w     ni    que   NA    NA    NA    NA    NA
#>  3 Bwkhab.7… 1.37e6 8.15e5 2468… m     ur    NA    NA    NA    NA    NA    NA
#>  4 Bwkhab.9… 1.59e6 1.01e6 4050… wz    hr    hc-   NA    NA    NA    NA    NA
#>  5 Bwkhab.6… 1.32e6 7.57e5 4075… m     ua    NA    NA    NA    NA    NA    NA
#>  6 Bwkhab.7… 7.35e5 7.12e5 5393… z     fe    NA    NA    NA    NA    NA    NA
#>  7 Bwkhab.7… 1.38e6 8.19e5 3947… z     cg    NA    NA    NA    NA    NA    NA
#>  8 Bwkhab.9… 7.57e5 7.35e5 5779… w     pmp   lar   NA    NA    NA    NA    NA
#>  9 Bwkhab.8… 1.53e6 9.52e5 3975… mwz   hp    n     kh    NA    NA    NA    NA
#> 10 Bwkhab.7… 7.35e5 7.13e5 5394… w     pmb   lar   cas   NA    NA    NA    NA
#> # ℹ 658 more rows
#> # ℹ 21 more variables: EENH8 <chr>, V1 <chr>, V2 <chr>, V3 <chr>, HERK <chr>,
#> #   INFO <chr>, BWKLABEL <chr>, HAB1 <chr>, PHAB1 <int>, HAB2 <chr>,
#> #   PHAB2 <int>, HAB3 <chr>, PHAB3 <int>, HAB4 <chr>, PHAB4 <int>, HAB5 <chr>,
#> #   PHAB5 <int>, HERKHAB <chr>, HERKPHAB <chr>, HABLEGENDE <chr>,
#> #   SHAPE <MULTISURFACE [m]>

This returns a MULTISURFACE geometry type. We can use a couple of sf functions to cast this to regular polygons:

bwk_bbox %>%
  st_cast("GEOMETRYCOLLECTION") %>%
  st_collection_extract("POLYGON") %>%
  st_geometry() %>%
  plot()

This can also be done using the wkt_filter argument from sf::read_sf.

bwk_bbox_sf <- read_sf(
  paste0("WFS:", wfs_bwk),
  layer = "BWK:Bwkhab",
  wkt_filter = st_as_text(
    st_as_sfc(
      st_bbox(
        c(xmin = 142600, ymin = 153800, xmax = 146000, ymax = 156900),
        crs = st_crs(31370)
      )
    )
  )
)

Spatial filters using spatial binary predicates

In addition to the filters above, you can use logical operations to restrict your area of interest. For example, features can be selected by intersection with another geographical object.

Intersects a point

As a proof of concept, we can directly query soil parameters at a specific location.

wfs_soiltypes <-
  "https://www.dov.vlaanderen.be/geoserver/bodemkaart/bodemtypes/wfs"

x_lam <- 173995
y_lam <- 212093

soil_type <- get_feature_wfs(
  wfs = wfs_soiltypes,
  layername = "bodemkaart:bodemtypes",
  crs = "EPSG:31370",
  cql_filter = sprintf(
    "INTERSECTS(geom,POINT(%s %s))",
    x_lam, y_lam
  )
)

soil_type
#> Simple feature collection with 1 feature and 45 fields
#> Geometry type: MULTISURFACE
#> Dimension:     XY
#> Bounding box:  xmin: 173846.5 ymin: 211962.5 xmax: 174030.9 ymax: 212190
#> Projected CRS: BD72 / Belgian Lambert 72
#> # A tibble: 1 × 46
#>   gml_id             gid id_kaartvlak Bodemtype Unibodemtype Bodemserie
#> * <chr>            <int>        <int> <chr>     <chr>        <chr>
#> 1 bodemtypes.72727 67754        67754 s-Pgp3(v) s-Pgp3(v)    Pgp
#> # ℹ 40 more variables: Beknopte_omschrijving_bodemserie <chr>,
#> #   Substraat_legende <chr>, Gegeneraliseerde_legende <chr>,
#> #   Substraat_code <chr>, Substraat_Vlaanderen <chr>, Textuurklasse_code <chr>,
#> #   Textuurklasse <chr>, Drainageklasse_code <chr>, Drainageklasse <chr>,
#> #   Profielontwikkelingsgroep_code <chr>, Profielontwikkelingsgroep <chr>,
#> #   Fase_code <chr>, Fase <chr>, Variante_van_het_moedermateriaal_code <chr>,
#> #   Variante_van_het_moedermateriaal <chr>, …

In theory, this should also be possible “the sf way”. However, sf filters after query (which takes a long time), and the code below does not work correctly.

soil_type_sf <- read_sf(
  paste0("WFS:", wfs_soiltypes),
  query = "SELECT * FROM bodemtypes",
  wkt_filter = sprintf(
    "ST_Intersects(geom,ST_Point(%s, %s))",
    x_lam, y_lam
  )
)

soil_type_sf

WCS examples

Above, we covered Web Feature Services (WFS), which are many kinds of vector data. Another common geographical data type are grid-like or “raster” data, which you can retrieve via Web Coverage Services (WCS). Behold, there is a get_coverage_wcs() available for some of the web services we regularly use at INBO.

Below the example of a false-colour infrared image. The three bands of the image are visualized using terra::plotRGB.

bbox <- sf::st_bbox(
  c(xmin = 99477, xmax = 99541, ymin = 172580, ymax = 172640),
  crs = sf::st_crs(31370)
)
omz <- get_coverage_wcs(
  wcs = "omz",
  bbox = bbox,
  layername = "OI.OrthoimageCoverage.OMZ.CIR",
  resolution = 1,
  version = "1.0.0"
)
terra::plotRGB(omz)

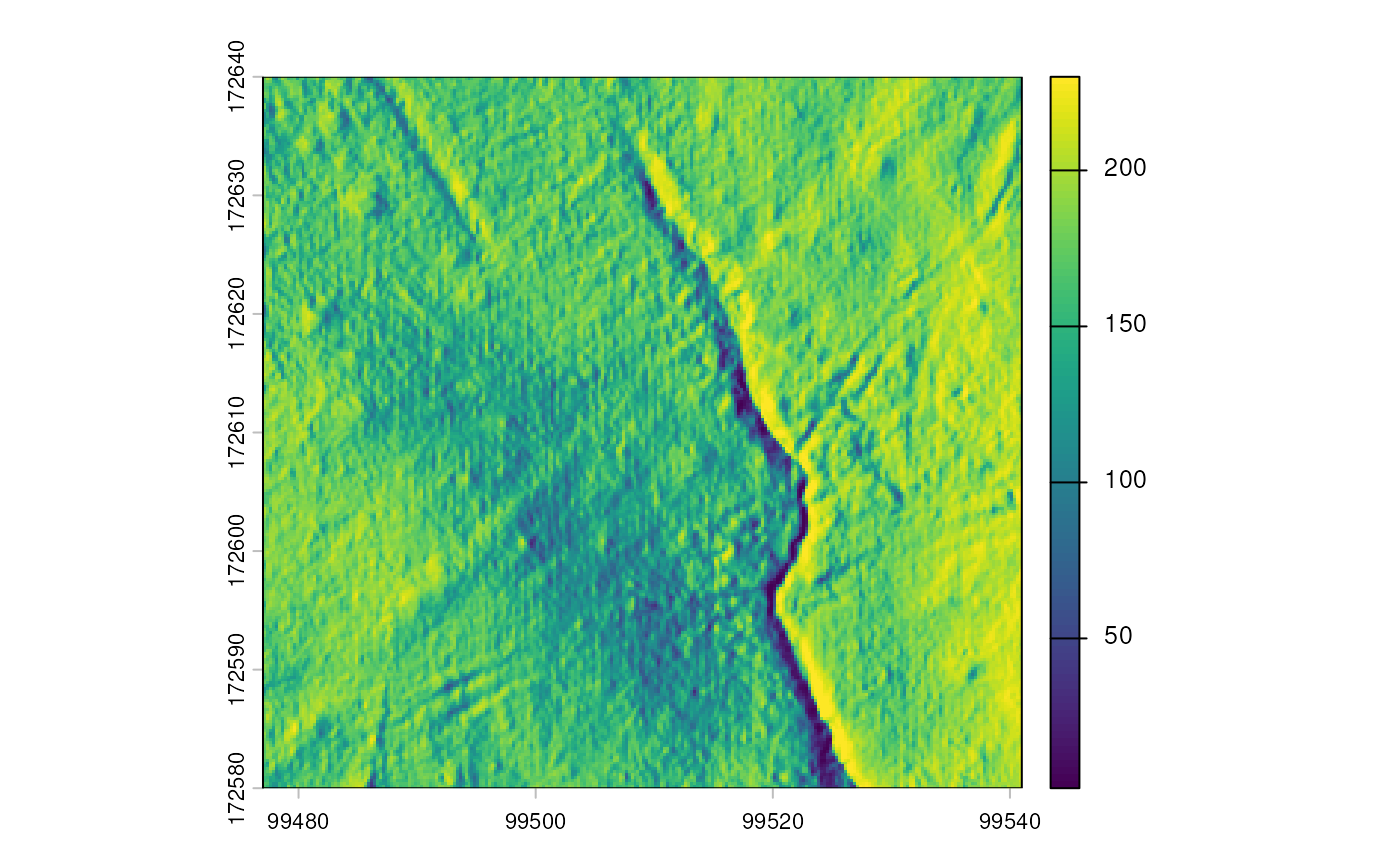

Another example, this time extracting the digital terrain model for the same bounding box:

dtm <- get_coverage_wcs(
  wcs = "dtm",
  bbox = bbox,
  layername = "EL.GridCoverage.DTM",
  resolution = 1)
terra::plot(dtm)

More details on WCS can be found in the spatial_dhmv_query.Rmd vignette.
