Dissecting a WCS Query: DHMV Case Study.

DHMV Data

Flemish government agencies host a lot of useful web services and data. Some of those are available via web services and can be found here:

https://www.vlaanderen.be/datavindplaats/catalogus

This vignette demonstrates the query of elevation data from the Digital Elevation Model, Digitaal HoogteModel Vlaanderen (DHMV). We will do it “the complicated way”, assembling a Web Coverage Service (WCS) query. In the end, you will see how to use inbospatial to get the same result in a single function call.

This vignette is somewhat related to, but goes beyond the use of Web Feature Services (WFS) for spatial data, see this tutorial by Thierry Onkelinx. In particular, I will document some paths and workarounds to explore if errors occur in the default ows4R procedure.

TL;DR: see the ?inbospatial:get_coverage_wcs function to query DHMV (or other WCS) data of a given point in Flanders. An example can be found below.

Situation/Motivation

The purpose of the code below is to query elevation data for an arbitrary location in Flanders. It can be found here:

https://www.vlaanderen.be/datavindplaats/catalogus/wcs-digitaal-hoogtemodel-vlaanderen

Unfortunately, documentation about the WCS is sparse, so let’s hope it complies with given standards.

We will use Web Coverage Services (WCS), as standardized by the Open Geospatial Consortium (OGC). More info on these services can be found in the “Geocomputation with R” book, for example. The go-to R package for WCS is ows4R by Emmanuel Blondel and contributors, available on github.

Unfortunately, neither the geocomputation book’s example, nor the vignette in the ows4R package, nor the INBO tutorial could be transferred to the DHMV use case. The code simply did not work.

Therefore, I ended up going back to the nitty-gritty aspects of WCS by manually building a query.

Limits of `ows4R` Package

Before revealing the solution, I will document the error and my path to working around it: the core problem was not trivial to see, and you might run into similar issues.

Because, in fact, the ows4R package seems functional. In the tutorial mentioned above, the ows4R package is used to query data from web services. However, ows4R cannot handle all niche server interfaces.

First, we need to load some packages.

library("httr")
library("sf")
#> Linking to GEOS 3.12.1, GDAL 3.8.4, PROJ 9.4.0; sf_use_s2() is TRUE
library("terra")
#> terra 1.7.83
if (!requireNamespace("ows4R", quietly = TRUE)) {
  install.packages("ows4R")
}
#> Loading ISO 19139 XML schemas...
#> Loading ISO 19115 codelists...
library("ows4R")

We can connect a WCS client.

wcs <- WCSClient$new(
  "https://geo.api.vlaanderen.be/DHMV/wcs", "2.0.1",
  logger = "INFO"
)
#> [ows4R][INFO] OWSGetCapabilities - Fetching https://geo.api.vlaanderen.be/DHMV/wcs?service=WCS&version=2.0.1&request=GetCapabilities
#>   |                                                                              |                                                                      |   0%  |                                                                              |======================================================================| 100%

We can easily query the capabilities:

caps <- wcs$getCapabilities()

This would grab the same info as you can find in this xml file: https://geo.api.vlaanderen.be/DHMV/wcs?service=WCS&request=getcapabilities

Note that the capabilities xml holds a lot of valuable information:

First and foremost, search it for CoverageID; in this case, I was interested in DHMVII_DTM_1m: grid coverage of the LIDAR elevation data for Flanders.
We can also find that the Coordinate Reference System (CRS) crsSupported is BD72 / Belgian Lambert 72. Always good to know.
Finally, the capabilities xml provides a version: 2.0.1 at the time of writing. Yet keep that in mind for a bit.

The “capabilities” are, per OGC standards, your go-to place for finding WCS documentation.

In R, we can receive further information conveniently via ows4R. This works via the “coverage summary” …

feature <- "DHMVII_DTM_1m"
dtm_smry <- caps$findCoverageSummaryById(feature, exact = TRUE)
dtm_smry
#> <WCSCoverageSummary>
#> ....|-- CoverageId: DHMVII_DTM_1m
#> ....|-- CoverageSubtype: GridCoverage
#> ....|-- WGS84BoundingBox <OWSWGS84BoundingBox>
#> ........|-- LowerCorner: 2.52 50.64
#> ........|-- UpperCorner: 5.94 51.51

… and the coverage description.

# Get description from the WCS client
dtm_des <- wcs$describeCoverage(feature)
#> [ows4R][INFO] WCSClient - Fetching coverageSummary description for 'DHMVII_DTM_1m' ...
#> [ows4R][INFO] WCSDescribeCoverage - Fetching https://geo.api.vlaanderen.be/DHMV/wcs?service=WCS&version=2.0.1&coverageId=DHMVII_DTM_1m&request=DescribeCoverage
#>   |                                                                              |                                                                      |   0%  |                                                                              |======================================================================| 100%
dtm_des
#> <WCSCoverageDescription>
#> ....|-- boundedBy  [srsName=http://www.opengis.net/def/crs/EPSG/0/31370,axisLabels=x y,uomLabels=Meter Meter,srsDimension=2] <GMLEnvelope>
#> ........|-- lowerCorner: 17000 148000
#> ........|-- upperCorner: 264000 250000
#> ....|-- domainSet  [gml:id=grid_DHMVII_DTM_1m,dimension=2] <GMLRectifiedGrid>
#> ........|-- limits <GMLGridEnvelope>
#> ............|-- low: 0 0
#> ............|-- high: 246999 101999
#> ........|-- axisLabels
#> ............|-- value: x y
#> ........|-- origin  [gml:id=grid_origin_DHMVII_DTM_1m,srsName=http://www.opengis.net/def/crs/EPSG/0/31370] <GMLPoint>
#> ............|-- pos: 17000.5 249999.5
#> ........|-- offsetVector  [srsName=EPSG:31370,srsDimension=2]
#> ............|-- value: 1 0
#> ........|-- offsetVector  [srsName=EPSG:31370,srsDimension=2]
#> ............|-- value: 0 -1
#> ....|-- rangeType <SWEDataRecord>
#> ........|-- field <SWEQuantity>
#> ............|-- description
#> ................|-- value: Band 1
#> ............|-- nilValues <SWENilValues>
#> ................|-- nilValue  [reason=http://www.opengis.net/def/nil/OGC/0/inapplicable]
#> ....................|-- value: -9999
#> ............|-- uom  [code=unknown]
#> ............|-- constraint
#> ................|-- AllowedValues
#> ....................|-- interval
#> ........................|-- value: -99.890144 354.144226
#> ....|-- CoverageId
#> ........|-- value: DHMVII_DTM_1m
#> ....|-- ServiceParameters <ISOElementSequence>
#> ........|-- CoverageSubtype: RectifiedGridCoverage
#> ........|-- nativeFormat: image/tiff

Finally, it is important to know which dimensions are available: LON/LAT, x/y, or maybe time?

dtm_dims <- dtm_smry$getDimensions()
#> [ows4R][INFO] WCSCoverageSummary - Fetching Coverage envelope dimensions by CRS interpretation
#> No encoding supplied: defaulting to UTF-8.
dtm_dims
#> [[1]]
#> [[1]]$label
#> [1] "x"
#>
#> [[1]]$uom
#> [1] "Meter"
#>
#> [[1]]$type
#> [1] "geographic"
#>
#>
#> [[2]]
#> [[2]]$label
#> [1] "y"
#>
#> [[2]]$uom
#> [1] "Meter"
#>
#> [[2]]$type
#> [1] "geographic"

So far, so good.

Now, following the tutorials to get some real data:

x_test <- 148600
y_test <- 208900
range_m <- 2 # (+/- m)

hopo_boxed <- OWSUtils$toBBOX(
  xmin = x_test - range_m,
  xmax = x_test + range_m,
  ymin = y_test - range_m,
  ymax = y_test + range_m
  )

I will write the file to disk:

mht_file <- tempfile(fileext = ".mht")

tryCatch({
  dtm_data <- dtm_smry$getCoverage(
    bbox = hopo_boxed,
    filename = mht_file
    )
  }, error = function(err) message(err)
)
#> [ows4R][WARN] WCSCoverageSummary - Coverage without temporal dimension: 'time' argument is ignored
#> [ows4R][WARN] WCSCoverageSummary - Coverage without vertical dimension: 'elevation' argument is ignored
#> <GMLEnvelope>
#> ....|-- lowerCorner: 148598 208898
#> ....|-- upperCorner: 148602 208902[ows4R][INFO] WCSGetCoverage - Fetching https://geo.api.vlaanderen.be/DHMV/wcs?service=WCS&version=2.0.1&coverageId=DHMVII_DTM_1m&subset=x(148598,148602)&subset=y(208898,208902)&format=image/tiff&request=GetCoverage
#>   |                                                                              |                                                                      |   0%  |                                                                              |======================================================================| 100%
#> Start tag expected, '<' not found
#> Warning in new_CppObject_xp(fields$.module, fields$.pointer, ...): GDAL Error
#> 4: `/tmp/RtmpNYlaDW/file1f753c7866af.mht' not recognized as a supported file
#> format.
#> Error: [rast] cannot open this file as a SpatRaster: /tmp/RtmpNYlaDW/file1f753c7866af.mht

… or, maybe not. The function fails, somehow.

Status quo:

I receive a file (an “mht” because I called it “mht”), supposedly some kind of GeoTIFF image (because I asked for image/tiff), yet wrapped into other data chunks.
I also receive a couple of error messages and warnings:
- “Start tag expected, ‘<’ not found”
- “cannot open this file as SpatRaster:…”
- The raw file is “not recognized as being in a supported file format. (GDAL error 4)”

Maybe most useful, ows4R briefly displays the URL it used to attempt data query: https://geo.api.vlaanderen.be/DHMV/wcs?service=WCS&version=2.0.1&coverageId=DHMVII_DTM_1m&subset=x(148599,148601)&subset=y(208899,208901)&format=image/tiff&request=GetCoverage

Let’s break this URL down:

the desired service is indeed WCS,
version is 2.0.1 (I would guess)
request, coverageID, and format seem to be as expected
there are subset components for the respective dimensions.

Feel free to try yourself to paste the URL to a browser and download the file.

Still, the downloaded file is unreadable. Subtle symptom: even if one adjusts the subset (i.e. bbox argument, above), the received tif does not change in size; the download is bbox-agnostic, so to speak.

Opening the file with a text editor such as vim, we see an XML part, some generic binary stuff, some hints that this should be a GML.

There are sample geoTIFFs online, and they look different, or maybe not. GML is clearly not geoTIFF, except maybe for the binary part (which I tried to extract, to no avail).

The file does not download with an extension on the author’s OS and browser. On a different OS, the browser automatically extended it with “.mht”. In fact, it is an MHT file. More on that below.

The Lead: QGIS

Well, there is advanced software to open GeoTIFF’esque files. Or geography markup. At least some software might be able to identify what we actually have here.

First, if R failed, Python might work.

import rasterio
import rasterio.plot

data_name = "/tmp/test_hopo.tif"
tiff = rasterio.open(data_name)
rasterio.plot.show(tiff, title = "will this work? no!")

… but it doesn’t recognize the file type as raster data.

How about QGIS? “Spatial Without Compromise”, they advertise. Unfortunately, that program also was unable to open the file downloaded in R.

However, QGIS can actually connect to WCS directly. This does not help much if you need the data in R. Yet, why not.

Look and behold: QGIS can actually connect to <https://geo.api.vlaanderen.be/DHMV/wcs> and query elevation data for Flanders; good indication that the WCS is, somehow, functional. I could zoom and move, export images. I could even export the data. I stopped exporting the data when it threatened to entirely fill my tiny system partition (the raster data is more than 100GB) - good confirmation that we want web services for this.

And, luckily, at some careless map movement, I received an error output from QGIS. With it, QGIS gave me a working URL to query DHMV:

https://geo.api.vlaanderen.be/DHMV/wcs?SERVICE=WCS&VERSION=1.0.0&REQUEST=GetCoverage&FORMAT=GeoTIFF&COVERAGE=DHMVII_DTM_1m&BBOX=162064,165735,170953,168882&CRS=EPSG:31370&RESPONSE_CRS=EPSG:31370&WIDTH=1622&HEIGHT=574

Let’s dissect this URL.

The Solution: Query Building

If you start at the question mark of the URL, and split at every ampersand, you can extract the following components from the (correct) QGIS URL:

correct:
SERVICE	WCS
VERSION	1.0.0
REQUEST	GetCoverage
FORMAT	GeoTIFF
COVERAGE	DHMVII_DTM_1m
BBOX	162064,165735,170953,168882
CRS	EPSG:31370
RESPONSE_CRS	EPSG:31370
WIDTH	1622
HEIGHT	574

Compare this to the (unsuccessful) ows4R attempt:

non-functional:
service	WCS
version	2.0.1
coverageId	DHMVII_DTM_1m
subset	x(148599,148601)
subset	y(208899,208901)
format	image/tiff
request	GetCoverage

You can selectively shuffle and adjust components, generalizing the working query and learning about the WCS interface. Which feels a bit like fuzzing the WCS.

Here is what I found:

service (WCS) and request (DHMVII_DTM_1m) were correct; the latter could be swapped for different datasets
coverage is the correct keyword for reading DHMVII_DTM_1m
version must be 1.0.0; it currently does not work with 2.0.1
instead of subsetting, we can use a bbox…
… but a width and height of the output image are mandatory; alternatively there are resx and resy (not shown)
we must specify a CRS (EPSG:31370), optionally also a response_crs
the format is GeoTIFF; slashes are weird in URLs anyway

After some more trial and error, I could construct working URLs in R and generalize this to a function.

get_elevation_wcs <- function(x, y, range_m = 1, tiff_file = NULL) {
  # Please note that this function lacks a lot of
  # assertions and documentation.

  # get bbox
  bbox <- paste(x - range_m, x + range_m,
               y - range_m, y + range_m,
               sep = ",")

  # the URL components
  base_url <- "https://geo.api.vlaanderen.be"
  endpoint <- "/DHMV/wcs" # nolint: absolute_path_linter

  # the query parameters which worked in QGIS
  elevation_query <- list(
    service = "WCS",
    version = "1.0.0",
    request = "GetCoverage",
    format = "GeoTIFF",
    coverage = "DHMVII_DTM_1m",
    bbox = bbox,
    width = 2 * range_m,
    height = 2 * range_m,
    crs = "EPSG:31370"
  )

  # get wcs data
  if (is.null(tiff_file)) {
    tiff_file <- tempfile(fileext = ".tiff")
  }
  GET(url = modify_url(base_url, path = endpoint),
      query = elevation_query,
      write_disk(tiff_file))
  # note: saving this to a file is optional,
  # but might prevent double download or loss of data

  # re-read raster file
  data <- rast(tiff_file)

  return(data)

}

Example usage:

x_test <- 148600
y_test <- 208900
range_m <- 10 # (+/- m)
test_raster <- get_elevation_wcs(x_test, y_test, range_m = range_m)

# we can extract a value at a point:
extract(test_raster, cbind(x_test, y_test))[[1]]
#> [1] 9.899891

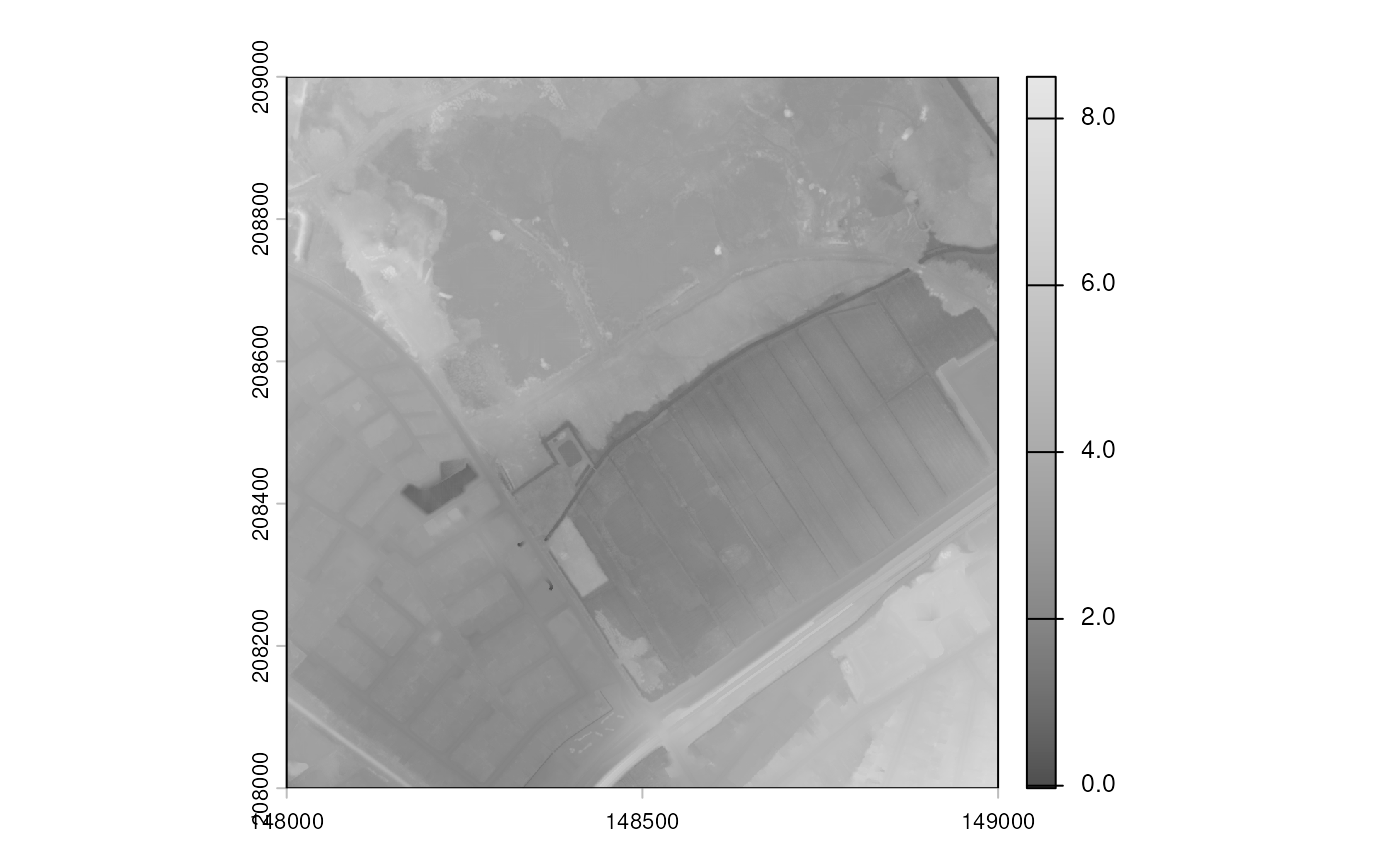

Voilà! We can now get the elevation of a given location in Flanders via DHMV web services.

Major grain of salt: we could not use the latest version, v2.0.1, of the DHMV WCS. This is not a minor limitation, and should be taken seriously: old versions become obsolete, break, or stop data updates.

Using Version `2.0.1`

Apparently, the exact symptoms of the failing query above are somewhat depending on your browser and operating system. Your browser might detect that the file is an mht, or not.

Here is an example of how to build a query with the current version of DHMV:

url <- parse_url("https://geo.api.vlaanderen.be/DHMV/wcs")

# the query parameters which worked in QGIS
url$query <- list(
  SERVICE = "WCS",
  VERSION = "2.0.1",
  REQUEST = "GetCoverage",
  FORMAT = "image/tiff",
  COVERAGEID = "DHMVII_DTM_1m",
  SUBSET = "x,http://www.opengis.net/def/crs/EPSG/0/EPSG:31370(148000,149000)",
  SUBSET = "y,http://www.opengis.net/def/crs/EPSG/0/EPSG:31370(208000,209000)",
  SCALEFACTOR = "1",
  CRS = "EPSG:31370",
  RESPONSE_CRS = "EPSG:31370"
)

request <- build_url(url)


# get wcs data
mht_file <- tempfile(fileext = ".mht")

print(request)
#> [1] "https://geo.api.vlaanderen.be/DHMV/wcs?SERVICE=WCS&VERSION=2.0.1&REQUEST=GetCoverage&FORMAT=image%2Ftiff&COVERAGEID=DHMVII_DTM_1m&SUBSET=x%2Chttp%3A%2F%2Fwww.opengis.net%2Fdef%2Fcrs%2FEPSG%2F0%2FEPSG%3A31370%28148000%2C149000%29&SUBSET=y%2Chttp%3A%2F%2Fwww.opengis.net%2Fdef%2Fcrs%2FEPSG%2F0%2FEPSG%3A31370%28208000%2C209000%29&SCALEFACTOR=1&CRS=EPSG%3A31370&RESPONSE_CRS=EPSG%3A31370"
print(mht_file)
#> [1] "/tmp/RtmpNYlaDW/file1f751102f7a8.mht"

response <- GET(url = request,
          write_disk(mht_file))

With the mht specifications found online, it is possible to create an unpacking function, which has become part of this very package.

library("readr")
library("stringr")

unpack_mht <- function(mht_filepath) {
  lines_raw <- read_lines_raw(mht_filepath)
  lines_char <- suppressWarnings(read_lines(mht_filepath))
  raw_vector <- read_file_raw(mht_filepath)

  start <- which(str_detect(lines_char, "^II\\*"))
  end <- length(lines_raw) - 1
  pos_start <- length(unlist(lines_raw[1:(start - 1)])) + start
  pos_end <- length(raw_vector) - (length(lines_raw[end + 1]) + 1)

  tif <- raw_vector[pos_start:pos_end]
  tif_path <- str_replace(mht_filepath, "mht", "tif")
  write_file(
    tif,
    tif_path
  )
  return(tif_path)
}

This way you get the elevation data extracted:

tif_file <- unpack_mht(mht_file)
raster <- rast(tif_file)
plot(raster, col = gray.colors(256))

The “`inbospatial`” Way

Colleague Hans Van Calster had been facing the same problems with related WCS layers a year earlier, and he wrote a function for it in the `inbospatial` package. We now refined the get_coverage_wcs() procedure to solve the mht issue.

Here is how to use it, for the same case as above:

bbox <- sf::st_bbox(
   c(xmin = 148000, xmax = 149000, ymin = 208000, ymax = 209000),
   crs = sf::st_crs(31370)
)
hopo_raster <- inbospatial::get_coverage_wcs(
  wcs = "dhmv",
  bbox = bbox,
  layername = "DHMVII_DTM_1m",
  version = "2.0.1",
  wcs_crs = "EPSG:31370",
  resolution = 1
)

plot(hopo_raster, col = gray.colors(256))

The function gives you quite some options of WCS layers to query data from.

WCS	layer name	reference
dtm	`EL.GridCoverage.DTM`	here
dsm	`EL.GridCoverage.DSM`	here
dhmv	`DHMVI_DTM_5m`	here
dhmv	`DHMVII_DTM_1m`	here
dhmv	`DHMVII_DSM_1m`	here

At a quick glance, we found that the dtm WCS seems to include canopy points, which is not according to definition; see here: https://www.neonscience.org/resources/learning-hub/tutorials/chm-dsm-dtm A general advice is to confirm your data for a region you know.

In addition, there are oi-omz and oi-omw for “zummer” and winter ortho-mosaic images.

The burden of choice!

Post Mortem

The value of this vignette seems to be limited: in essence, it provides the specific query function arguments for elevation model queries with the geo.api WCS of the Flemish digital services. Quite a niche use case.

However, this is also a story of tracing errors in existing tools, and scraping other tools for hints.

Can we actually trace the error back to a source? It was pure co-incidence that QGIS provided a working link, or are there general strategies? As colleague @florisvdh pointed out, QGIS generally has good heuristics to infer a web service URL, and choose parameter values which work. Once a web service layer is successfully loaded in QGIS, one can inspect URLs and metadata in the layer properties. The QGIS dialogue to add a web service layer is also helpful in exploring available layers of a web service.

In retrospective, the initial issue was worsened by unfavourable circumstances.

ows4R retrieved a file and produced an error; another error was only thrown downstream. Neither ows4R, nor terra, sf, rasterio, or qgis were able to handle mht files. This lack of support questions the WCS design choice of packing and sending an mht.
Documentation for the geo.api.vlaanderen.be WCS is lacking (or I did not find it); in particularly I missed usage examples, vignettes, or tests.

The colleagues at Digitaal Vlaanderen or the DHMV group certainly had enough work on their table, yet more documentation would be desirable. Same for ows4R, judging by their github issue list (see e.g. this one). On the other hand, QGIS is free- and open source, its queries seem to be well maintained and are accessible, errors are transparent, I could have read the source code - a good example piece of software.

Yet in general, if you run into issues like this, do not hesitate to contact support or file a github issue. You should not need to fuzz a WCS.

Thank you for reading, and may all your spatial queries be successful!

DHMV Data
Situation/Motivation
Limits of ows4R Package
The Lead: QGIS
The Solution: Query Building
Using Version 2.0.1
The “inbospatial” Way
Post Mortem

Falk Mielke (falk.mielke@inbo.be)

DHMV Data

Situation/Motivation

Limits of `ows4R` Package

The Lead: QGIS

The Solution: Query Building

Using Version `2.0.1`

The “`inbospatial`” Way

Post Mortem

Table of Contents

Dissecting a WCS Query: DHMV Case Study.

Falk Mielke (falk.mielke@inbo.be)

DHMV Data

Situation/Motivation

Limits of ows4R Package

The Lead: QGIS

The Solution: Query Building

Using Version 2.0.1

The “inbospatial” Way

Post Mortem

Table of Contents

Limits of `ows4R` Package

Using Version `2.0.1`

The “`inbospatial`” Way
